SLOTTED PANELS
Murano Slotted Acoustic Panels
Murano Slotted Acoustic Panels combine timeless timber beauty with precise acoustic performance. Designed for architects and interior designers, these panels create an elegant linear rhythm while effectively controlling sound reflections in commercial, cultural, and educational environments.
Architectural Timber Design with Acoustic Function
Murano Slotted Panels are crafted with a series of uniform slots that absorb sound and scatter reflections. Each slot configuration can be customised to achieve specific acoustic results, making them ideal for lecture halls, theatres, offices, and reception areas. When combined with an acoustic backing or air cavity, Murano Slotted Panels can achieve NRC ratings between 0.65 and 0.90.
Materials and Finishes
Manufactured from premium MDF or plywood cores, Murano panels are available in real timber veneers, laminates, or painted finishes. Designers can select from a range of surface coatings and perforation patterns to suit the interior aesthetic. Panels are supplied with precise edge detailing for seamless alignment during installation.
Applications
Murano Slotted Acoustic Panels are widely used in:
- Lecture theatres and auditoriums
- Corporate boardrooms and offices
- Reception and foyer spaces
- Public halls and performance venues
- Hospitality and cultural facilities
Performance and Acoustic Properties
Murano panels can be backed with acoustic insulation or installed with an air cavity to optimise absorption. Acoustic performance depends on the slot width, spacing, and backing material, allowing designers to meet specific reverberation control requirements for each project.
Product Specifications
| Property | Details |
|---|---|
| Core Material | MDF or Plywood |
| Thickness | 12mm, 15mm, or 18mm |
| Slot Width | 3mm – 12mm (custom options available) |
| Finish Options | Timber veneer, laminate, or painted |
| Acoustic Rating (NRC) | 0.65 – 0.90 (depending on backing) |
Contact Sontext for Custom Acoustic Solutions
For further information or assistance with specifying Murano Slotted Acoustic Panels, contact the Sontext team. We provide design support, technical data, and acoustic modelling to help you achieve the right balance of aesthetics and performance for your project.
Benefits & Features
Paint Finish
Create an inviting and unique interior space with a huge range of surface finishes, colours and groove patterns. Speak to our team about your project’s requirements.

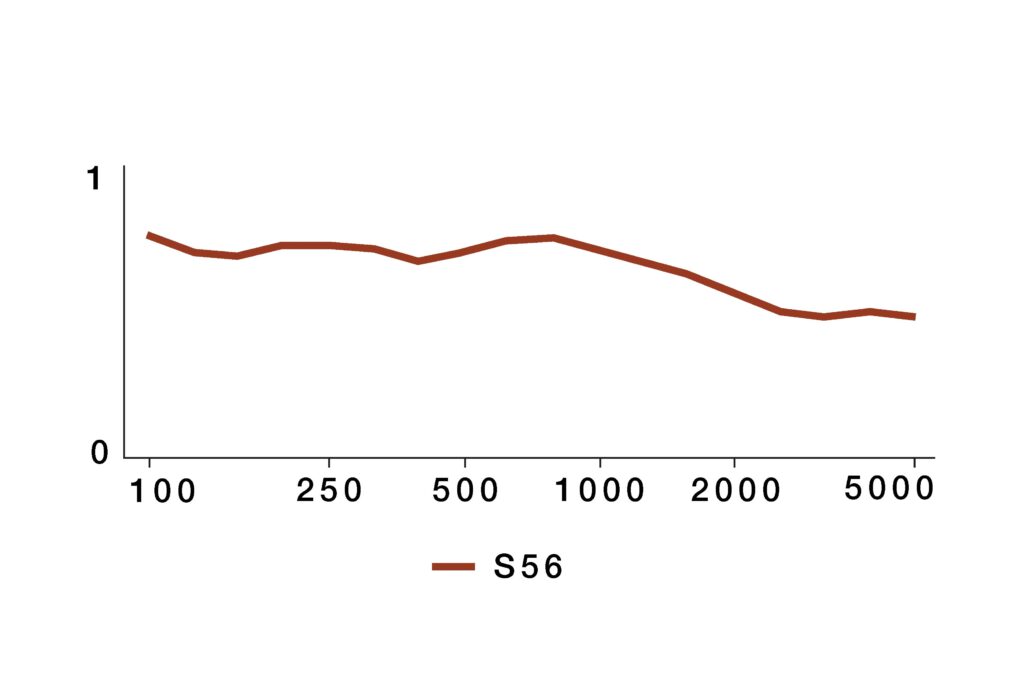

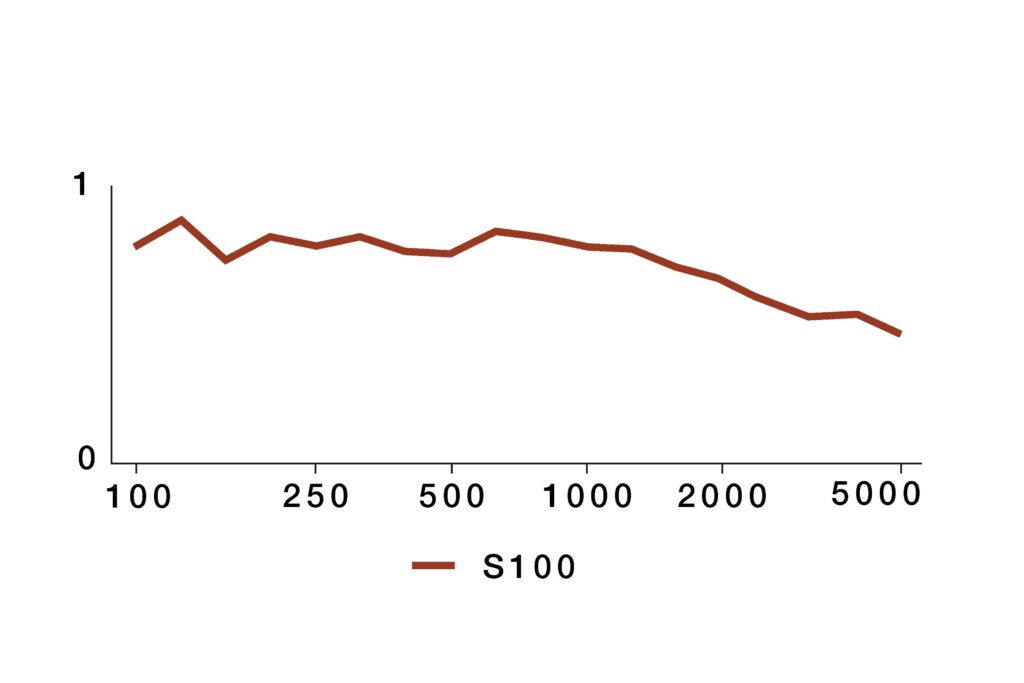

Sound Absorption
These test results show the consistent performance of Murano Slotted Panels across a range of frequencies, confirming their suitability for use in lecture theatres, offices, and performance spaces.
Slotted Timber Acoustic Panels
Fire Safety
Murano Acoustic Timber panels are manufactured from a range of Fire rated MDF substrates. These have been tested and meet international fire standards. Speak to our experienced team about your needs and the requirements of your region.
Technical Data Sheets
What are Murano Slotted Acoustic Panels?
Murano Slotted Acoustic Panels are precision-cut timber panels designed to absorb sound while adding a decorative timber aesthetic. Each panel features a series of evenly spaced slots that help control reverberation in a room.
Where can Murano Slotted Panels be installed?
They can be installed on walls or ceilings in auditoriums, lecture theatres, offices, reception areas, and other spaces where both design and acoustic comfort are important.
What finishes are available?
Panels can be finished in natural timber veneer, durable laminate, or a painted surface to match your interior design scheme.
What is the NRC rating of Murano Slotted Panels?
Depending on the slot pattern, panel thickness, and acoustic backing, NRC values typically range between 0.65 and 0.90.
Can the slot pattern be customised?
Yes. Sontext can customise the slot width, spacing, and layout to meet specific acoustic performance and design requirements.
SUSTAINABILITY
Murano Acoustics is a division of Sontext Australia. Sontext, as a company is totally committed to sustainability: we are environmentally aware and environmentally active. Sontext is fully committed to reducing our carbon footprint and energy consumption.
We use products that range from 70% – 100% recycled materials in our manufacturing process. Our products include ODP free insulation, and it’s our aim that all raw materials meet international standards for Zero formaldehyde and no harmful VOC’s. The company will endeavour to follow best practice in line with the requirements of ISO14001:2015 and the expectations of all interested parties.
QUALITY POLICY
Murano Acoustics parent company, Sontext Australia, employs an ISO 9000:2015 Quality Management System ensuring our customers can have confidence in our ability to consistently provide the highest quality products and services.
